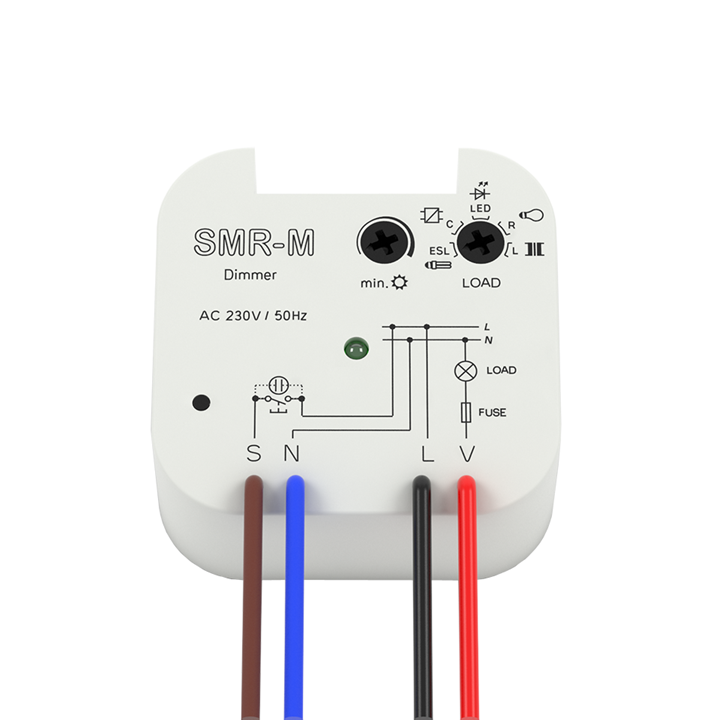

Universal dimmer suitable for all types of light bulbs. It is possible to set the type of load (R, L, C, ESL, LED) and brings the possibility of dimming 90% of all dimmable light bulbs on the market.

- designed for dimming light bulbs, halogen lights with a winding or electronic transformer, dimmable energy-saving bulbs and dimmable LEDs

- enables continuous adjustment of the light intensity with a button or buttons in parallel

- when switched off, the set brightness level is saved in memory and when switched on again, the brightness is already set to this value

- the type of light bulb is set with a switch on the device panel

- setting the minimum brightness with the potentiometer on the device panel eliminates the flickering of various types of energy-saving bulbs

- push-button ("bell" arrangement) dimmer intended for installation in an installation box (68mm deep) in the existing electrical installation

- protection against exceeding the temperature inside the device - turns off the output

Technical parameters

- Power terminals: x

- Connection: 4-wire with "NEUTRAL"

- Supply voltage: AC 230 V / 50 Hz

- Supply voltage tolerance: -15%; +10%

- Power consumption (apparent): max. 1.5VA

- Max. load 800W

- Power indication: green LED

- Control voltage: AC 230V

- Working temperature: -20.. +35 °C

- Working position: any

- Fixing: loose on supply wires

- Protection: IP30 under normal conditions

- Dimension: 49 x 49 x 21 mm

- Weight: 38g





Implementation in the interior here.

Accessories

dimmer M
Price 95,90 USD
